Application
The MS-1050 is used for the following applications:
- The internal and external grinding of surfaces on pipes and vessels.
- The grinding of internal and external longitudinal and circumferential weld seam reinforcements.
If necessary, the grinding head can be mounted into a turning fork. This allows the preparation of welding edges on flat plates and on the face of vessels, sections, and pipes.
Technology

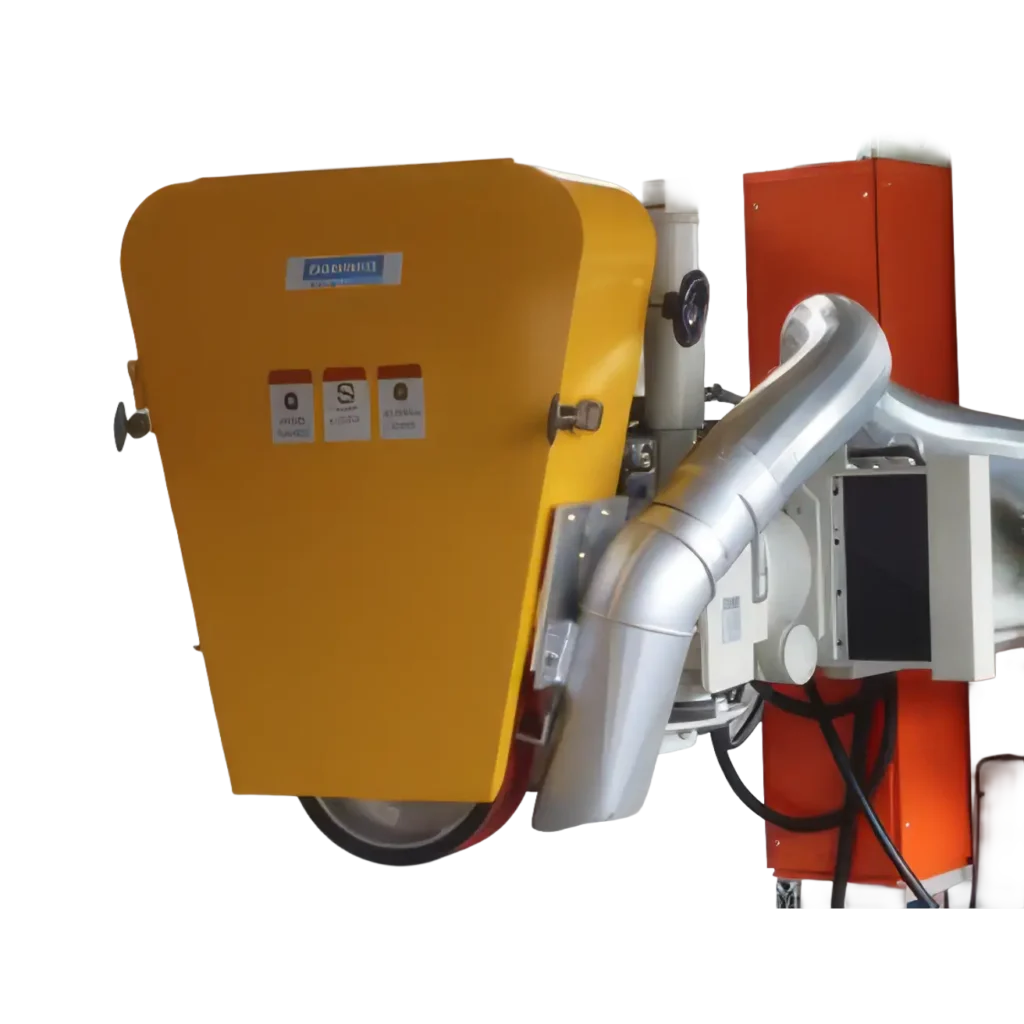

The floating grinding head follows automatically any run-outs of the work piece with constant pressure (Free play). The weight of the floating part of the grinding head was reduced to a minimum by mounting the driving motor to the basic part. The power is transmitted by v-belts. The precise adjustment of the grinding pressure with a pneumatic control system and a belt oscillation ensures an optimal utilization of the grinding belts. The belt change requires only a few manipulations. Pneumatic belt tension and belt running correction. The MS-1050 can be equipped with grinding belts as well as polishing rings, wire brushes, flap wheels, Scotch-Brite-discs and belts.
Performance
Very high rates of material removal:
- Low alloy steel:Â up to 500 g/min.
- Stainless steel:Â up to 300 g/min.
Any desired surface finish can easily be achieved by using finer and finer grain of belts.
