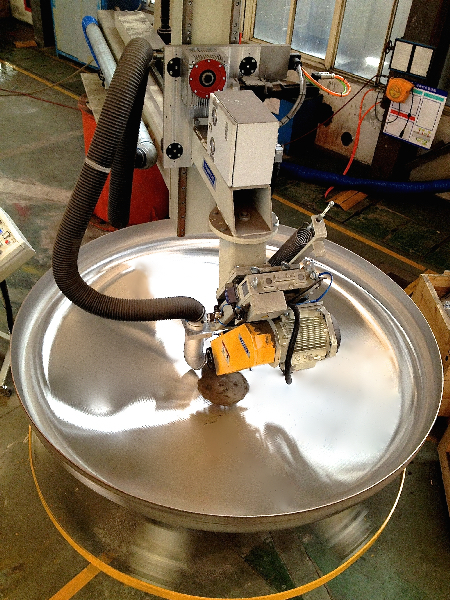

The BSA 1000 is designed specifically for grinding dished ends with diameters ranging from 23 – 236”. The vertical stroke is articulated by a grinding head mounted directly to a vertical adjustment arm and fixed at the end of the boom. The horizontal and vertical feeds are driven electronically via adjustable servo-motors and speeds are regulated with closed-loop control units.
The BSA 1000 can also be customized for internal cone grinding applications with a minimum 60° angle depending on the diameter. A turning ring mounted between the articulating arm and grinding head support allows the system to rotate into position. A separate grinding head is not required as the cones are ground along with the dished end.
The electrical cabinet can be self-supporting or mounted to the back of the machine. This cabinet will power and control all contactors, time-lag relays, electronic controllers, etc. A smaller cabinet houses all necessary electronically controlled pneumatic valves. The mobile control panel will contain all the required components for operation of the machine.
